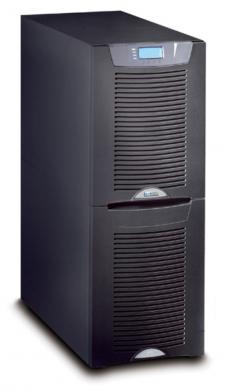

Eaton 9155 UPS

Eaton 9155 UPS

The Eaton 9155 UPS provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9155 UPS is a complete power protection solution. The 9155 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.



Features And Benefits

  • Delivers a complete solution in a sleek tower design that includes internal batteries and an integrated power distribution module
  • Enables paralleling of up to four 9155 UPSs for additional capacity and redundancy
  • Extends battery service life with ABM technology that uses an innovative three-stage battery charging system
  • Offers industry-leading power density with small footprint and more power capacity than comparable UPSs
  • Offers scalability with 8 to 10 kVA and 12 to 15 kVA capacity upgrades
  • Provides more real power in less space with high 0.9 output power factor

Specifications

Product Snapshot

Power Rating  8-15 kVA at 0.9 power factor
Voltage            200 - 240 VAC with Neutral or with Optional Input Transformer
Frequency        50/60 Hz
Configuration  Compact Tower
Product Series Powerware
