Security Plus Series UPS

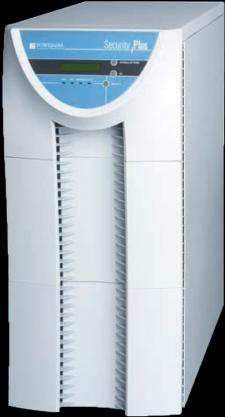

Security Plus Series UPS

Power protection and reliability for your mission critical application

Over sizing a power protection system can result in higher costs to buy, install
and operate. With the Security Plus Series UPS from POWERVAR, you do not
have to oversize your equipment. The Security Plus Series is built to handle
modern computer loads - systems with high crest factors and high current
inrush peripherals - so over sizing is never an issue. In turn saving you money
on your power protection equipment investment.

Security Plus offers custom solutions to meet the electrical requirements in
today’s most diverse environments. You have the ability to custom design
the output receptacle panel and your input line cord. These options allow
the Security Plus Series to offer quick and easy on-site connection to your
equipment.

All models are UL listed and CE marked.

Specifications

  • Product sizes range from 2 kVA to 15 kVA
  • Wide input voltage and frequency window provided by the online inverter
  • Impressive 0.9 output power factor
  • Low impedance isolation transformer
  • Low input THDi
  • Industry leading overload capabilities
  • Diverse input voltage options
  • Let through voltage is less than 10 volts normal mode and less than 0.5 volts neutral-to-ground when tested to ANSI/IEEE C62.41
  • One-year warranty



Low Voltage Load Power (kVA) Input Voltage (VAC) Output Voltage (VAC) Input Plug Output Receptacles Frequency (Hz) Case Size Ship Weight lb (kg)
ABCDEF2000-11 2.0 100-120 100-120 Option Available Option Available 50/60 A 310 (130)
ABCDEF3000-11 3.0 100-120 100-120 Option Available Option Available 50/60 A 389 (175)
High Voltage Load Power (kVA) Input Voltage (VAC) Output Voltage (VAC) Input Plug Output Receptacles Frequency (Hz) Case Size Ship Weight lb (kg)
ABCDEF2000-22 2.0 200-240* 200-240* Option Available Option Available 50/60 A 310 (130)
ABCDEF2000-22 3.0 200-240* 200-240* Option Available Option Available 50/60 A 389 (175)
ABCDEF2000-22 4.0 200-240* 200-240* Option Available Option Available 50/60 A 389 (175)
ABCDEF2000-22 5.2 200-240* 200-240* Option Available Option Available 50/60 A 310 (130)
ABCDEF2000-22 6.0 200-240* 200-240* Option Available Option Available 50/60 A 389 (175)
ABCDEF2000-22 8.0 200-240* 200-240* Option Available Option Available 50/60 B 389 (175)
ABCDEF2000-22 10.0 200-240* 200-240* Option Available Option Available 50/60 B 310 (130)
ABCDEF2000-22 12.0 200-240* 200-240* Option Available Option Available 50/60 C 389 (175)
ABCDEF2000-22 15.0 200-240* 200-240* Option Available Option Available 50/60 C 389 (175)

*200, 208, 220, 230 & 240 volt solutions. *Contact factory for input and output options.

Case Dimensions

(H x W x D) - in. (mm.):
A Case - 28.90 X 11.80 X 31.91 (735 X 300 X 811)
B Case - 33.46 X 13.77 X 38.61 (850 x 350 x 981)
C Case - 42.53 x 15.75 x 44.39 (1080 x 400 x 1128
