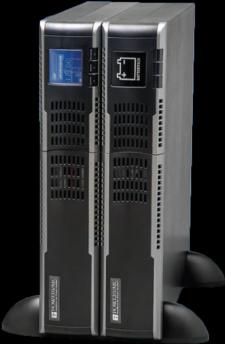

Sinergy III Series UPS

Sinergy III Series UPS

Engineered to satisfy demanding applications

Sinergy III Series UPS is a online double conversion UPS. Universal rack/tower design with hot-swappable internal batteries. The extended runtime capability allows backup power protection for up to 8 hours

The Sinergy III Series UPS offers a high degree of protection for all your sensitive equipment. Ideal for applications including advanced computer peripherals, telecom electronics, datacenters, advanced control systems and VoIP | PBX systems.

All models are UL and cUL listed and CE marked.





Specifications

  • Product sizes range from 700 VA to 6000 VA
  • Online system with true sinewave output
  • Controllable receptacles
  • Configurable as tower or 19” rack
  • Line up and match extended battery packs available
  • Safety approvals: UL, cUL and CE
  • One-year product warranty
North American Load Current (Amps) Load Power (VA) Input Voltage (VAC) Output Voltage (VAC) Frequency (Hz) Dimensions H x W x D (in)
ACDEF700-11 5.8 700 120 120 50/60 3.39 x 17.24 x 16.26
ACDEF1000-11 8.3 1000 120 120 50/60 3.39 x 17.24 x 16.26
ACDEF1500-11 12.5 1500 120 120 50/60 3.39 x 17.24 x 20.20
ACDEF2000-11 16.7 2000 120 120 50/60 3.39 x 17.24 x 20.20
ACDEF3000-11 25.0 3000 120 120 50/60 3.39 x 17.24 x 26.95
International Load Power (VA) Input Voltage (VAC) Output Voltage (VAC) Frequency (Hz) Dimensions H x W x D (in)
ACDEF700-11 2000 200/208/220/230/240 200/208/220/230/240 50/60 3.39 x 17.24 x 20.20
ACDEF1000-11 3000 200/208/220/230/240 200/208/220/230/240 50/60 3.39 x 17.24 x 26.95
ACDEF1500-11 6000 200/208/220/230/240 200/208/220/230/240 50/60 5.14 x 17.24 x 27.13
