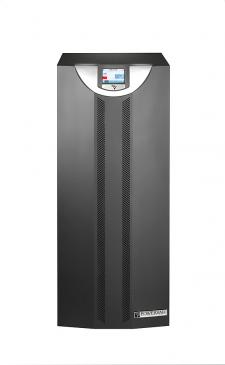

Three Phase UPS - 3200 Series

Three Phase UPS - 3200 Series

POWERVAR has provided the industry with 25 years of power quality solutions and has developed a full line of power protection equipment with unmatched reliability and quality that is the gold standard of the industry.  Announcing the POWERVAR 3200 Series, Three-Phase Uninterruptible Power Supply (UPS) designed for small data centers and critical load applications.  The reliability and superior design of the 3200 Series UPS has the smallest footprint in the industry which translates to more data center space for additional computer racks.

Technology

The most advanced IGBT technology, widest input range in the industry
Inrush current capability to withstand up to 300%. No other Three-Phase UPS measures up to our rigorous standards



Reliability

POWERVAR has provided the industry with 25 years of power quality solutions
1 year product warranty; includes batteries

Transformer-Less Design

High efficiency rate, up to 93%
The POWERVAR 3200 Series has one of the smallest footprints in the industry

Serviceability

Front and top access for serviceability
Hot swappable batteries

Communications

Integrated SNMP network card and Modbus ports to remotely monitor and manage the UPS System
State of the art internal touchscreen battery monitoring functionality

Specifications

kVA Size kW Dimensions (W x D x H) Internal Runtime UPS Weight
10kVA 9 kW 18.0" x 33.7" x 48.0" 6 minutes 600 lbs
20kVA 18 kW 18.0" x 33.7" x 48.0" 6 minutes 700 lbs
30kVA 27 kW 23.2" x 34.8" x 59.6" 9 minutes 1,050 lbs
40kVA 36 kW 23.2" x 34.8" x 59.6" 5 minutes 1,050 lbs

Input Specifications:

208VAC (3 phase, 4-wire)
Input Voltage Range (+15%, -15%)
Power Factor (0.99 100% load, 0.98 min. 50% load)
Input THDi (1% - 100% load, 2%-50% load)
Frequency Range (43-67Hz)

Agency Approvals

UL1778 (4th Ed.), cUL, CSA 22.2
IEC 62040-1 UPS Standards
ISO 9001 Quality Assurance Program
EMI Compatibility: FCC Title 47, Part 15, Subpart B
UL924 Compliant

Communications

RS485/232 Communication ports (Standard)
SNMP Compatible (Standard)
Modbus Compatible (Standard)
(4) Digital Programmable Inputs (Standard)
(6) Programmable Dry Contact Outputs (Standard)

Accessories

Matching Transformer Cabinets
Matching Battery Cabinets
Matching Maintenance Bypass System Cabinets
DC Disconnects
Wall-mounted external Maintenance Bypass Systems
Remote Monitoring Panel (RMP)

Output Specifications

208VAC/120VAC (3 phase, 4-wire)
Overload Capacity (w/utility) (300% for 10 seconds)
(150% for 60 Seconds)
(125% for 10 minutes)
Efficiency (93%)
Output Voltage THD (2%)
Output Frequency (50/60 Hz)

Environmental

Operating Temperature Min. F/(C) 32 / (0)
Operating Temperature Max. F/(C) 104 / (40)
Storage Temperature Min. F/(C) -4 / (-20)
Relative Humidity 0-95%, non-condensing
Operating Elevation ft/(m) 3,300 (1,000)
per IEC 62040/3
Audible Noise Less than 54dba @ 1 meter
